Construction of quay no. 16 of Vanasadama

Client: Tallinn Sadam AS

Contract Period: November 2014 – June 2015

Construction Cost: 1 991 150 EUR  _{^{(ex VAT)}}

Capacity Information:

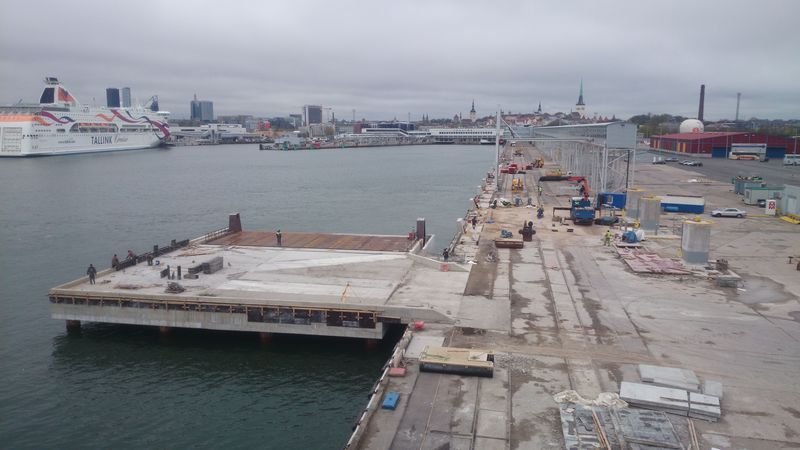

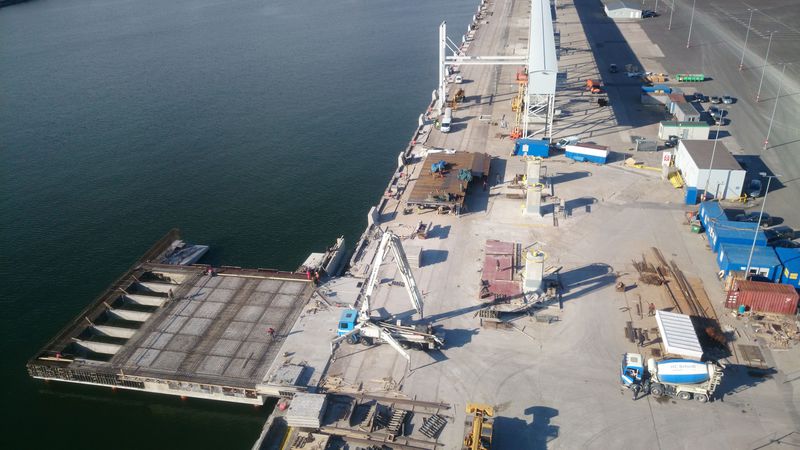

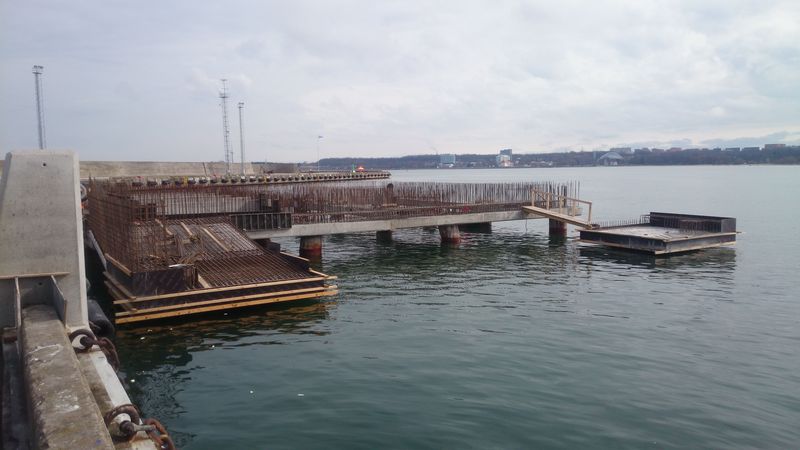

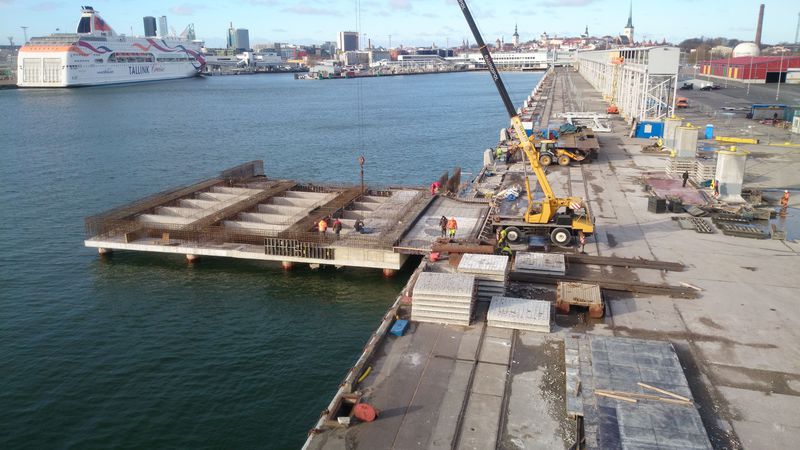

• Construction of a ramp with a reinforced concrete superstructure resting on piles (plan dimensions 31 x 28.5m.) and a steel bridge with an adjustable height of the Vanasadam Pier No. 16.

• The ramp is designed for boarding and disembarking transport vehicles transported by ships.

• Installation of electrical supply, lighting, steel bridge lifting mechanism on the ramp, with control devices, spring protection, and rescue equipment.

• Reconstruction of the fender protection on the mooring line of quays No. 14, 15, and 16.

• Construction of reinforced concrete braces, installation of bracing systems with two conical braces and UHMW-PE cover and steel panel (17 sets). Construction of tower bollards (6 pcs.) to secure ships to the quayside.

• Reconstruction of the electrical supply of berths 14, 15, and 16.

• Installation of new electrical panels (6 pcs.), cable lines, and communication cables in the quay channel.
  Also new reinforced concrete slabs for channel cover.

• Preparation of necessary construction and product drawings.
